Mikrotik RB941-2nD HAP Lite 最低價的家用路由器

發佈日期: 2015-03-29，作者: yawpyng

Mikrotik RB941-2nD HAP Lite 這款是目前最低價的家用路由器，適用於家庭或者小型辦公室等小面積環境；內置WPS按鈕，更便利於接入網路。

此設備還支援更改為CAP模式，按下WPS可直接加入CAPsMAN無線管理系統。

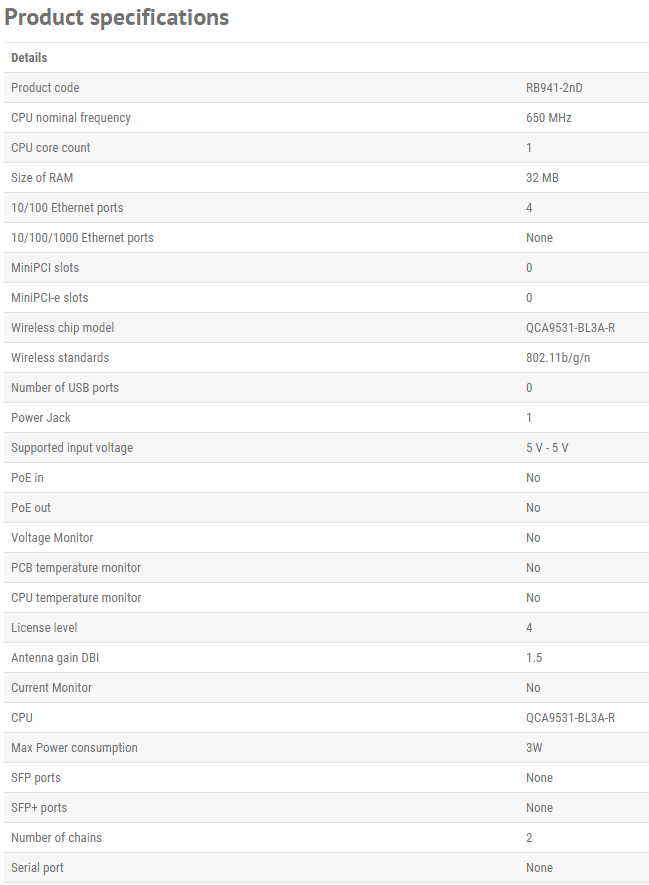

機器配備 650MHz CPU，32MB RAM，2.4GHz 無線，L4授權，四個100m乙太網口。

每一口都能獨立設置為WAN口

RB941-2nD 性能測試

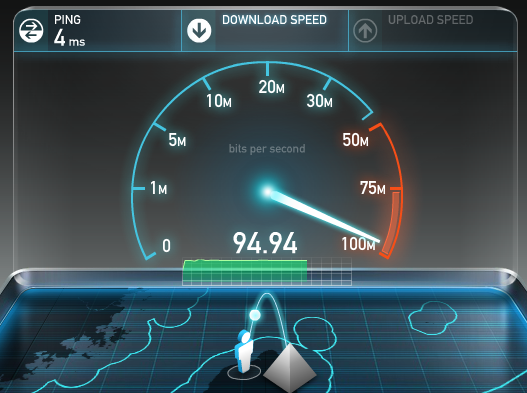

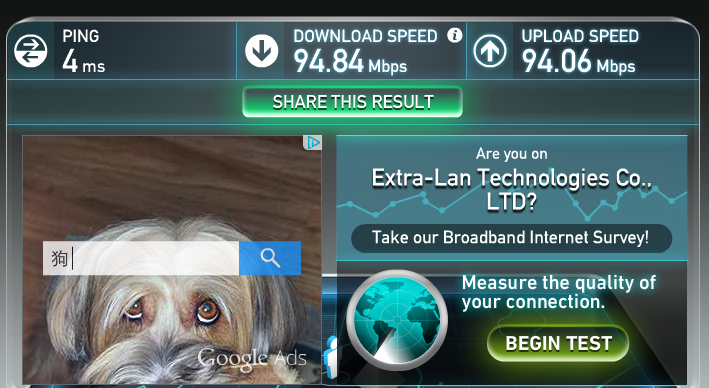

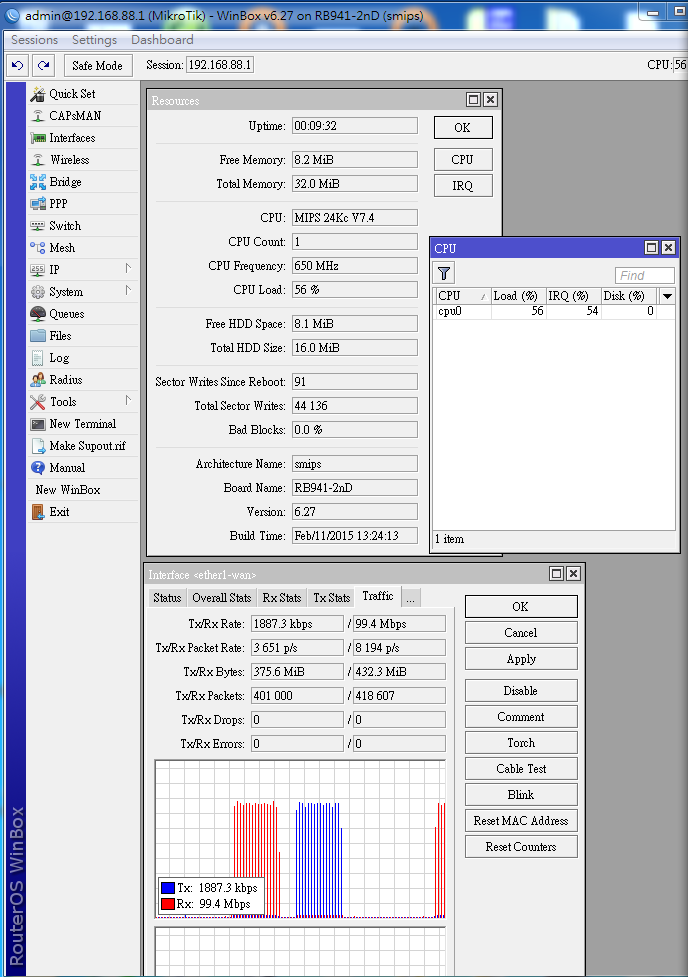

跑測速100M時CPU 56％負荷

無線規格

2.4 GHz
	TX	RX
1MBit/s	22	-96
11MBit/s	22	-89
6MBit/s	20	-93
54MBit/s	18	-74
MCS0	20	-93
MCS7	16	-71

官方性能測試結果

RB941-2nD		QCA9531 100M all port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	32.5	394.8	94.0	385.0	173.6	88.9
Bridging	25 bridge filter rules	32.5	394.8	56.1	229.8	56.7	29.0
Routing	none (fast path)	32.5	394.8	94.0	385.0	160.8	82.3
Routing	25 simple queues	32.5	394.8	63.7	260.9	72.6	37.2
Routing	25 ip filter rules	32.5	394.8	33.8	138.4	34.6	17.7

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
