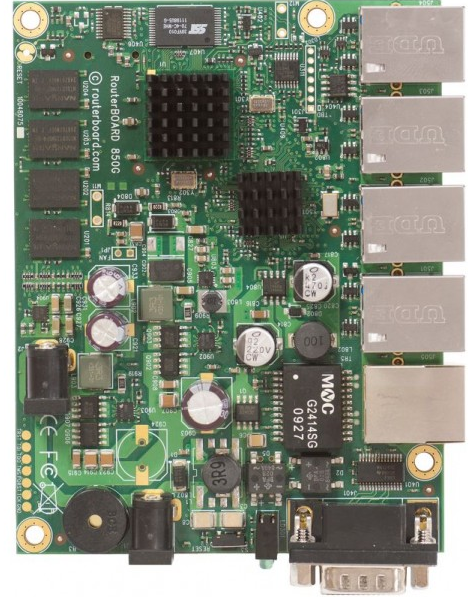

The RB850Gx2 is a five port Gigabit ethernet router. Comparing to the RB450G, the RB850Gx2 is much faster, with a dual core CPU, yet it still retains the same form factor, and will fit into the same enclosures.
The device is powered by a 500MHz P1023 PPC CPU, and also includes a temperature sensor and voltage monitor.
Product specifications
| Details | |
|---|---|
| Product code | RB850Gx2 |
| CPU nominal frequency | 500 MHz |
| CPU core count | 2 |
| Size of RAM | 512 MB |
| Architecture | PowerPC |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 5 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | None |
| Number of USB ports | 0 |
| Memory Cards | 1 |
| Memory card type | microSD |
| Power Jack | 2 |
| 802.3af support | No |
| PoE out | No |
| PoE in | Yes |
| Supported input voltage | 5 V – 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| CPU temperature monitor | Yes |
| Dimensions | 90mm x 115mm |
| Operating System | RouterOS |
| License level | 5 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | P1023NSN5CFB |
| Max Power consumption | 8 W |
| SFP ports | 0 |
| SFP+ ports | None |
| Number of chains | 0 |
| Serial port | RS232 |
