CRS125-24G-1S-2HnD-IN 24口 + 300Mbps 無線路由器

Mikrotik 最新產品

CRS125-24G-1S-2HnD-IN 24口 + 300Mbps 無線路由器 (非機架式)

合計24個Gigabit網口+1個SFP光纖插槽

支援switch硬體交換,支援802.1Q VLAN

License level L5授權

每個網口都可當成獨立的網口使用

支援網口隔離功能,24個網口互不干擾 (適合出租套房使用)

Youtube 影片介紹

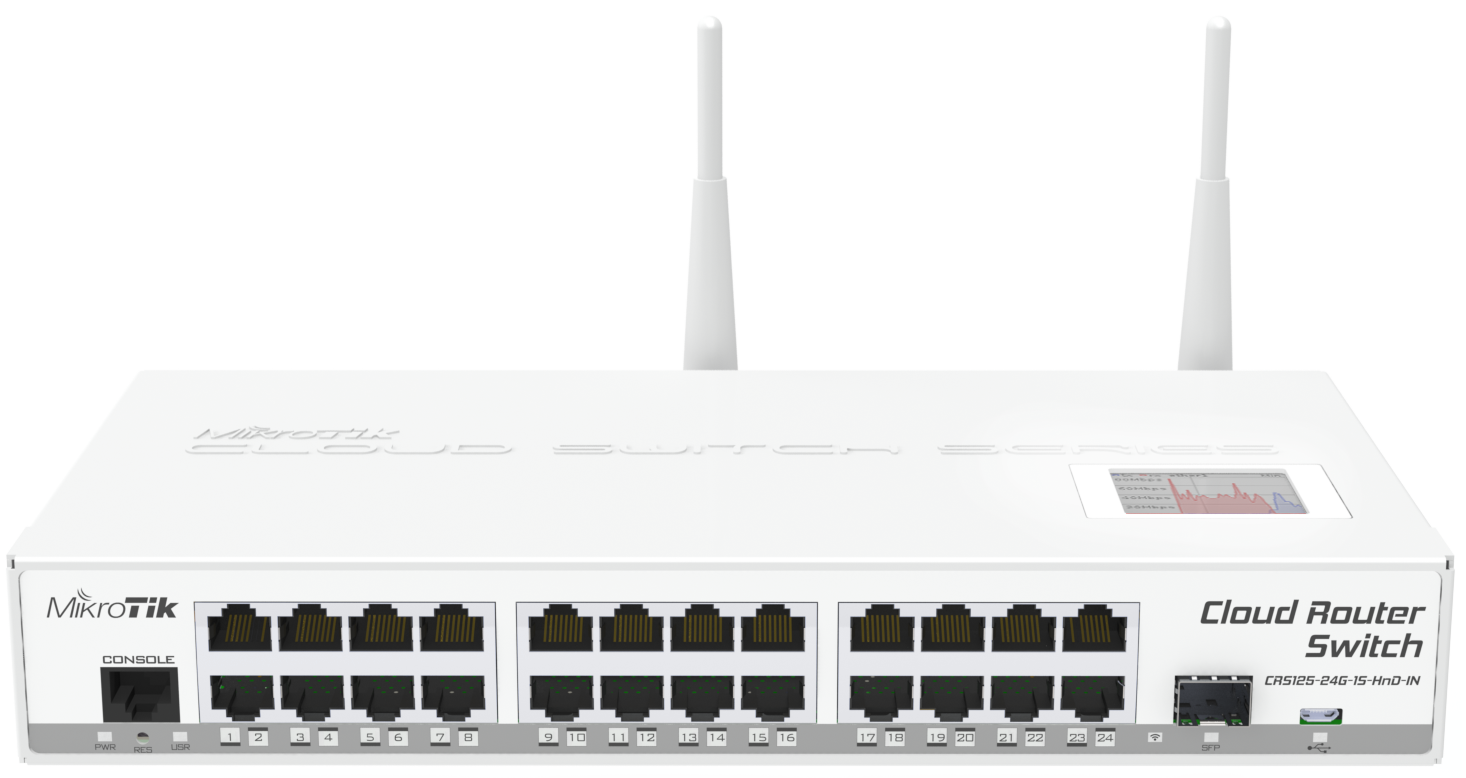

CRS125-24G-1S-2HnD-IN

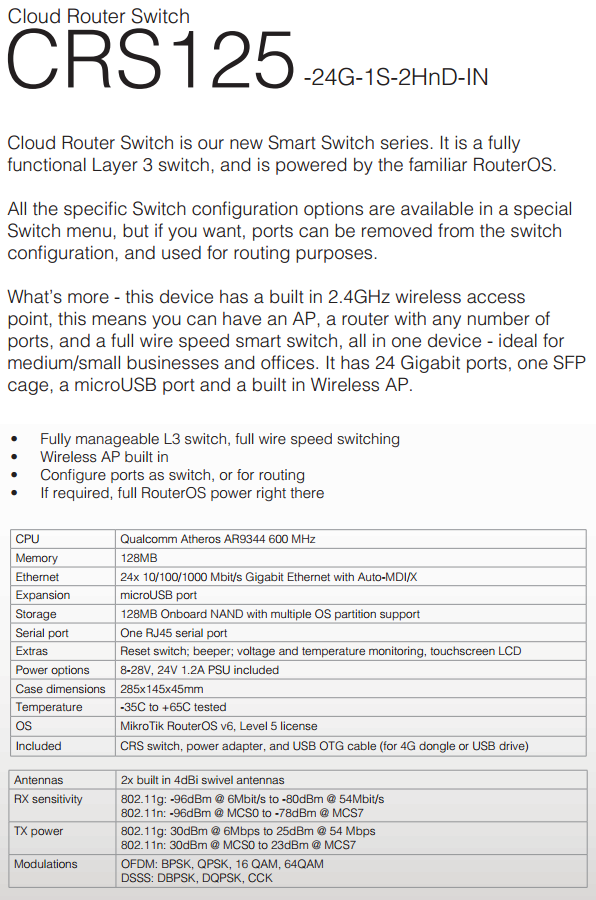

Cloud Router Switch is our new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch
configuration, and used for routing purposes.

Choose ports for Wire speed switching, or for routing purposes.

What’s more – this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device – ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

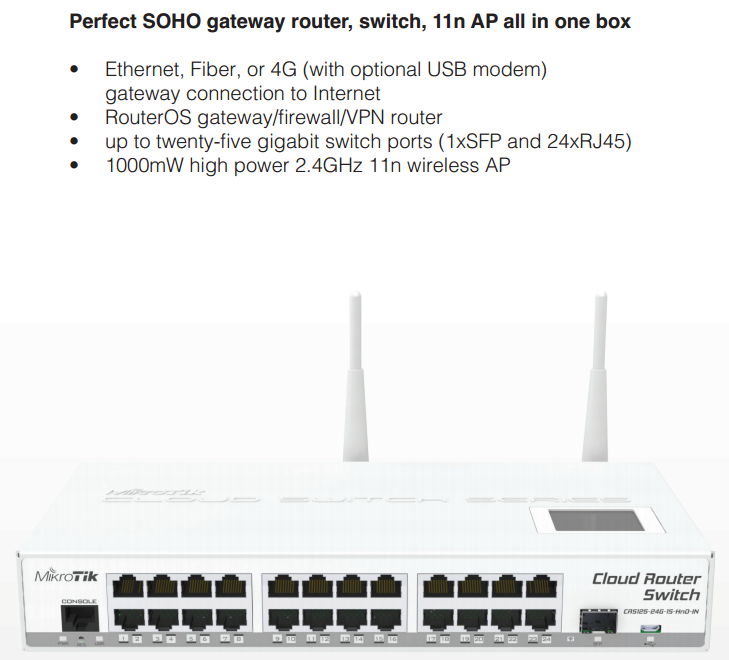

Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• 1000mW high power 2.4GHz 11n wireless AP

Product specifications

Details
Product code CRS125-24G-1S-2HnD-IN
SFP DDMI Yes
CPU nominal frequency 600 MHz
CPU core count 1
Architecture MIPS-BE
Size of RAM 128 MB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 24
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model None
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 8-28V DC
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 285x145x45mm
Operating System RouterOS
Operating temperature range -35C to +65C
License level L5
Antenna gain DBI 4dbi
Current Monitor No
TX power 30dBm
CPU AR9344-DC3A-R
SFP ports 1
USB slot type microUSB type AB
Suggested price $209.00
